How to Protect WebSocket Connection with OpenAM and OpenIG

Original article: https://github.com/OpenIdentityPlatform/OpenIG/wiki/How-to-Protect-WebSocket-Connection-with-OpenAM-and-OpenIG

Introduction

This article is a continuation of the article How to Add Authorization and Protect Your Application With OpenAM and OpenIG Stack . The previous article described how to protect regular HTTP endpoints. In the following, we will protect a WebSocket connection with OpenAM authentication. To simplify the setup and deployment of services we will use Docker and Docker Compose tools.

Sample Websocket Service Introduction

To test WebSocket we will use a Spring Framework-based Sample Socket Service. To run the service in Docker, create a docker-compose.yml file and add sample-service:

docker-compose.yml:

version: '3'
services:
  sample-service:
    image: maximthomas/sample-service
    restart: always
    ports:
        - "8082:8080"
    networks:
      openam_network:
        aliases:
          - sample-service
networks:
  openam_network:
    driver: bridge

Run the docker compose up command and after the service is started, open your browser and navigate to http://localhost:8082/ui/ws. You will see a web page from which you can connect to the WebSocket, send messages, and see the replies from the server. Establish a connection by pressing the Connect button and send a message by pressing the Send Message button. After a message is received by the server it responds by the current server time.

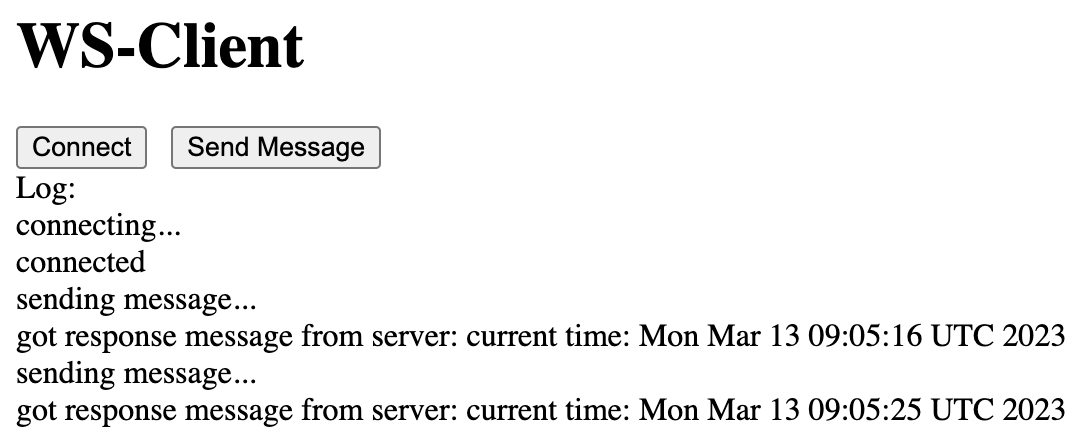

Sample Service WebSocket UI

OpenIG Configuration

Let’s setup access to the sample service instance via OpenIG. Remove the ports section from the docker-compose.yml file and add OpenIG.

Create folder openig-config go to the folder and create two files admin.json and config.json with the following contents:

admin.json

{
    "prefix" : "openig",
    "mode": "PRODUCTION"
}

confin.json

{
  "heap": [],
  "handler": {
    "type": "Chain",
    "config": {
      "filters": [],
      "handler": {
        "type": "Router",
        "name": "_router",
        "capture": "all"
      }
    }
  }
}

Then add OpenIG routes for sample-service UI and WebSocket endpoints. Create a routes folder in the openig-config folder. In routes folder create a 10-ui.json for UI and a 10-websocket.json as well. 10-ui.json

{
   "name": "${matches(request.uri.path, '^/ui/*')}",
   "condition": "${matches(request.uri.path, '^/ui/*')}",
   "monitor": true,
   "timer": true,
   "handler": {
      "type": "Chain",
      "config": {
         "filters": [],
         "handler": "EndpointHandler"
      }
   },
   "heap": [
      {
         "name": "EndpointHandler",
         "type": "DispatchHandler",
         "config": {
            "bindings": [
               {
                  "handler": "ClientHandler",
                  "capture": "all",
                  "baseURI": "${system['secured']}"
               }
            ]
         }
      }
   ]
}

10-websocket.json

{
  "name": "${matches(request.uri.path, '^/ws-handler')}",
  "condition": "${matches(request.uri.path, '^/ws-handler')}",
  "monitor": true,
  "timer": true,
  "handler": {
    "type": "Chain",
    "config": {
      "filters": [
        {
          "type": "HeaderFilter",
          "config": {
            "messageType": "REQUEST",
            "add": {
              "Host": [
                "${matchingGroups(system['ws.secured'],\"(http|https):\/\/(.[^\/]*)\")[2]}"
              ]
            },
            "remove": [
              "Sec-Websocket-Key",
              "Sec-Websocket-Version",
              "Host",
              "Origin"
            ]
          }
        }
      ],
      "handler": "EndpointHandler"
    }
  },
  "heap": [
    {
      "name": "EndpointHandler",
      "type": "DispatchHandler",
      "config": {
        "bindings": [
          {
            "handler": "ClientHandler",
            "capture": "all",
            "baseURI": "${system['ws.secured']}"
          }
        ]
      }
    }
  ]
}

We need to remove headers from the client’s original HTTP request to establish a proper WebSocket connection from OpenIG instance to the secured-service.

Add OpenIG service to the docker-compose.yml file.

...
  openig:
    image: openidentityplatform/openig
    build: .
    volumes:
      - ./openig-config:/usr/local/openig-config/config:ro
    ports:
      - "8081:8080"
    environment:
      CATALINA_OPTS: -Dopenig.base=/usr/local/openig-config -Dsecured=http://sample-service:8080 -Dopenam=http://openam.example.org:8080/openam -Dws.secured=ws://sample-service:8080 -org.openidentityplatform.openig.websocket.ttl=180
    networks:
      openam_network:
        aliases:
          - openig.example.org
...

System properties from OpenIG example configuration

Peroperty Description
secured points to the HTTP service
ws.secured Points to the WebSocket service
openam points to OpenAM instance (we will use this setting in the future chapters)
org.openidentityplatform.openig.websocket.ttl The interval in seconds, during which the validity of the session is checked (default 180)

Run the docker compose command using the updated file. After OpenIG and sample servie are up, open http://localhost:8080/ui/ws URL in your browser. You’ll be able to establish a WebSocket connection and all interactions will be proxied by OpenIG.

OpenAM Configuration

Let’s add OpenAM authentication to our stack. Add OpenAM service to the docker-compose.yml file.

...
  openam:
    image: openidentityplatform/openam
    volumes:
      - ./data/openam:/usr/openam/config
    ports:
      - "8080:8080"
    networks:
      openam_network:
        aliases:
          - openam.example.org
...

The ./data/openam folder is needed to store OpenAM persistent configuration.

Add FQDN openam.example.org and openig.example.org to hosts file: 127.0.0.1 openam.example.org openig.example.org

Run the docker-compose file, setup OpenAM, add cookie domain and setup jwt endpoint as described in How to Add Authorization and Protect Your Application With OpenAM and OpenIG Stack article.

Add OpenAM token validation filters to the 10-websocket.json file.

{
          "type": "ConditionalFilter",
          "config": {
            "condition": "${empty contexts.sts.issuedToken and not empty request.cookies['iPlanetDirectoryPro'][0].value}",
            "delegate": {
              "type": "TokenTransformationFilter",
              "config": {
                "openamUri": "${system['openam']}",
                "realm": "/",
                "instance": "jwt",
                "from": "OPENAM",
                "to": "OPENIDCONNECT",
                "idToken": "${request.cookies['iPlanetDirectoryPro'][0].value}"
              }
            }
          }
        },
        {
          "type": "ConditionalFilter",
          "config": {
            "condition": "${not empty contexts.sts.issuedToken}",
            "delegate": {
              "type": "HeaderFilter",
              "config": {
                "messageType": "REQUEST",
                "remove": [
                  "Authorization",
                  "JWT"
                ],
                "add": {
                  "Authorization": [
                    "Bearer ${contexts.sts.issuedToken}"
                  ]
                }
              }
            }
          }
        },
        {
          "type": "ConditionEnforcementFilter",
          "config": {
            "condition": "${not empty contexts.sts.issuedToken}",
            "failureHandler": {
              "type": "StaticResponseHandler",
              "config": {
                "status": 401,
                "reason": "Found",
                "headers": {
                  "Content-Type": [
                    "application/json"
                  ],
                },
                "entity": "{ \"Error\": \"Unauthorized\"}"
              }
            }
          }
        }

These three filters do the following: The first filter converts OpenAM token to JWT and sets to the request context. The second filter adds JWT to the OpenIG to the target service request. The third filter checks if there is a JWT in the request context and if not, responds with the 401 error. If authentication

Test Solution

Navigate to http://openig.example.org:8081/ui/ws and press the Connect button. You will see the connection error message.

Log:
connecting...
socket error occurred
socket connection closed

Open the next tab in your browser and navigate to the OpenAM URL http://openam.example.org:8080/openam

Login to OpenAM, return to http://openig.example.org:8081/ui/ws tab and try to connect again.

You will see the following

connecting...
connected

Press the Send Message button and you should see the following messages

sending message...</br>
got response message from server: current time: Mon Mar 13 12:57:45 UTC 2023

Let’s logout from OpenAM go back to http://openig.example.org:8081/ui/ws wait 3 minutes (as set in the org.openidentityplatform.openig.websocket.ttl setting) and try to send a message.

We will see the following:

sending message...
socket connection closed

Sample Service WebSocket UI and OpenAM
