Configuring OpenIDM for Synchronization Between Active Directory and OpenDJ

Original article: https://github.com/OpenIdentityPlatform/OpenIDM/wiki/Configuring-OpenIDM-for-Synchronization-Between-Active-Directory-and-OpenDJ

Introduction

In this article we will configure two-way synchronization between Active Directory and OpenDJ. Changes made in Active Directory will be synchronized to OpenDJ and vice versa.

Configuring OpenIDM

A deployment of OpenIDM is described in the documentation. It is assumed that you have already deployed OpenIDM.

Configuring the data sources

Configuring Active Directory

Download the Active Directory provisioner.openicf-adldap.json Active Directory connection file from GitHub and copy it to the OpenIDM conf directory.

Modify the properties to match your Active Directory server settings:

Configuring OpenDJ

If you do not have OpenDJ installed, install it as described in the documentation.

Download the Example.ldif test data file from GitHub

Perform the initial configuration of OpenDJ and import the data using the following command:

 cd /path/to/opendj

 ./setup --cli \
--hostname localhost \
--ldapPort 1389 \
--rootUserDN "cn=Directory Manager" \
--rootUserPassword password \
--adminConnectorPort 4444 \
--baseDN dc=com \
--ldifFile /path/to/Example.ldif \
--acceptLicense \
--no-prompt
...
Configuring Directory Server ..... Done.
Creating Base Entry dc=com ..... Done.
Starting Directory Server ....... Done.
...

Download the OpenDJ provisioner.openicf-ldap.json connection configuration file from GitHub and copy it to the OpenIDM conf directory.

The file can remain unchanged, as it is already configured for the default OpenDJ connection settings.

Configuring Active Directory → OpenDJ synchronization

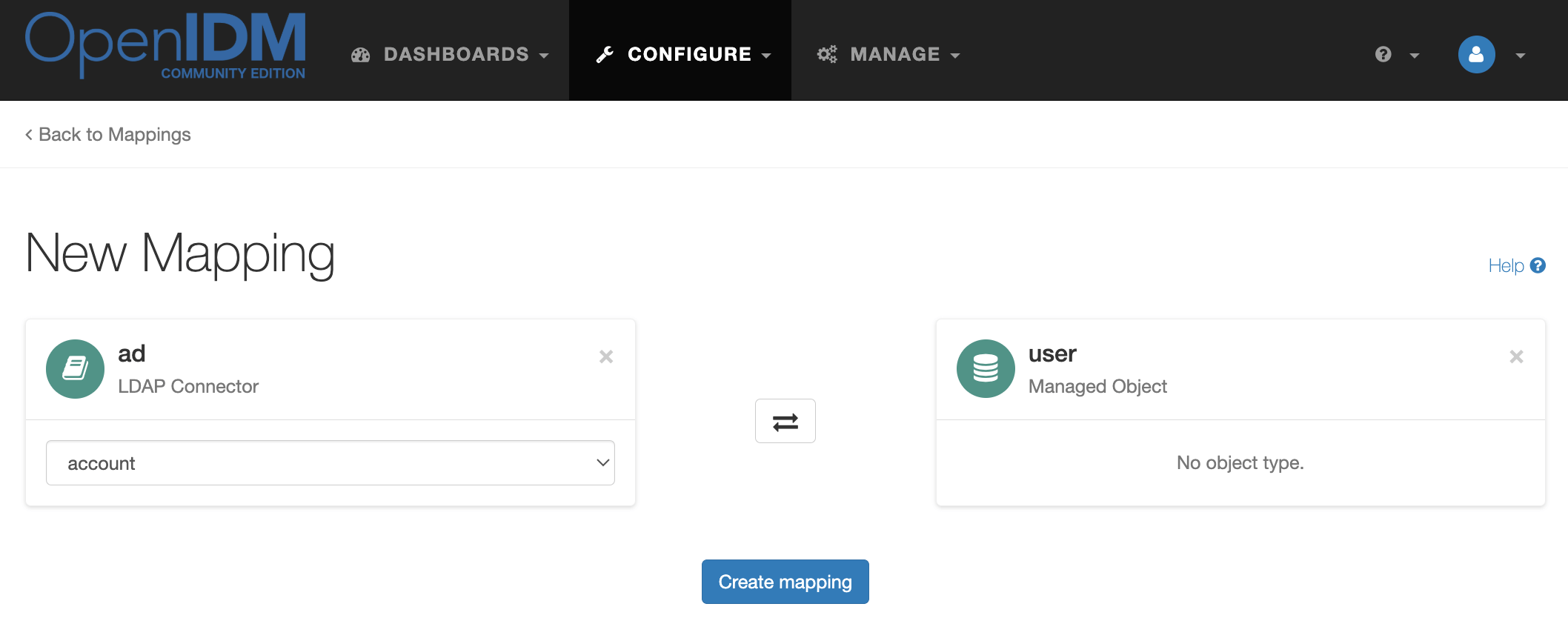

Open the OpenIDM administrator console at http://localhost:8080/admin. Login with the username openidm-admin and password openidm-admin. In the top menu, navigate Configure → Mappings and create Mapping ad → user as shown in the figure below.

Open the created mapping systemAdAccounts_managedUser and on the Properties tab configyre the field mappings as shown in the table below.

On the Behaviors tab, configure the behavior for different synchronization situations.

Save the changes.

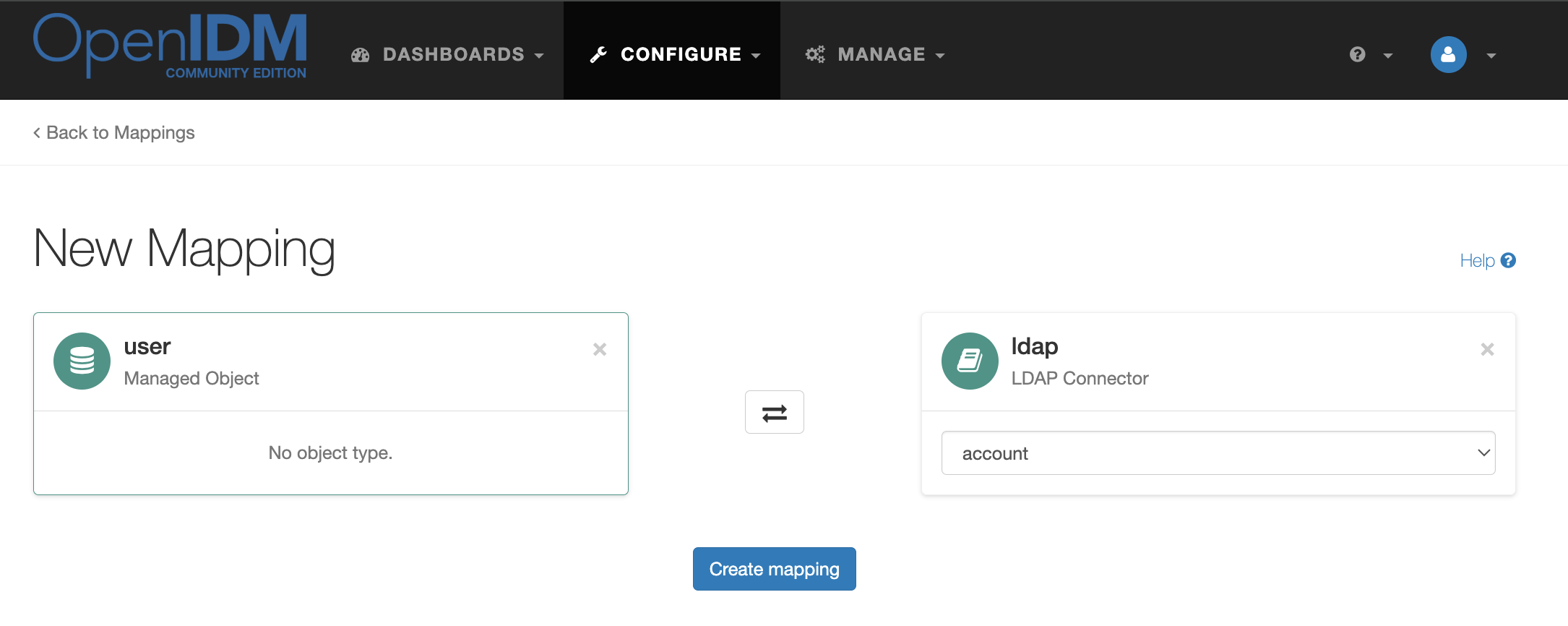

On the Mappings tab, create another mapping as shown in the figure below

Open the settings of the created mapping managedUser_systemLdapAccounts and on the Properties tab customize the field mappings as shown in the table below:

For the description field, specify the default value Created in OpenIDM

On the Behaviors tab, configure the behavior for different synchronization situations:

On the same tab in the Situational Event Scripts section, add a script for the onCreate event.

target.dn = 'uid=' + source.userName + ',ou=People,dc=example,dc=com';

Configure OpenDJ → Active Directory synchronization

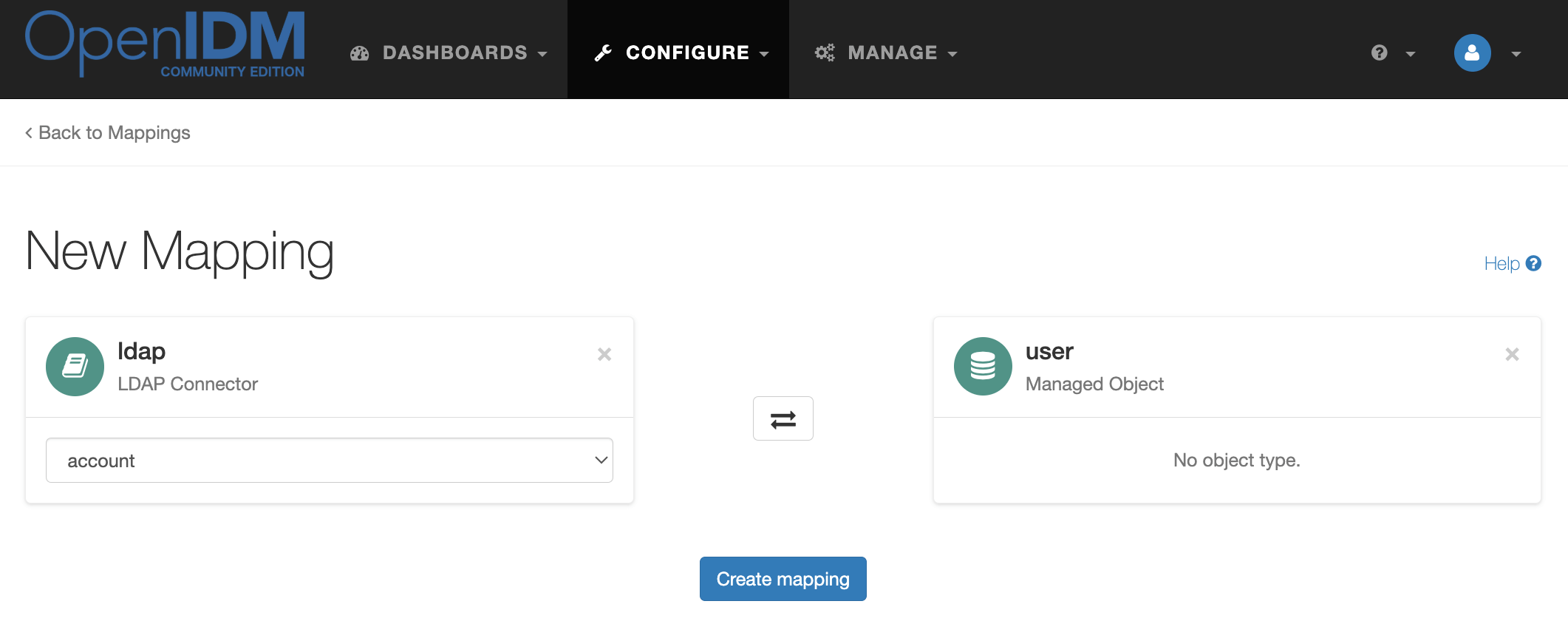

Create OpenDJ → Managed User synchronization

In the Linked Mapping field, select managedUser_systemLdapAccounts.

Open the created mapping systemLdapAccount_managedUser and on the Properties tab customize the field mappings as shown in the table.

On the Behaviors tab, configure the behavior.

Create mapping Managed User → Active Directory

In the Linked mapping field, select systemAdAccounts_managedUser.

In the created mapping managedUser_systemAdAccounts , configure the mapping:

On the Behaviors tab, configure the behavior similar to the step above.

Verifying the solution

Active Directory Synchronization → OpenDJ

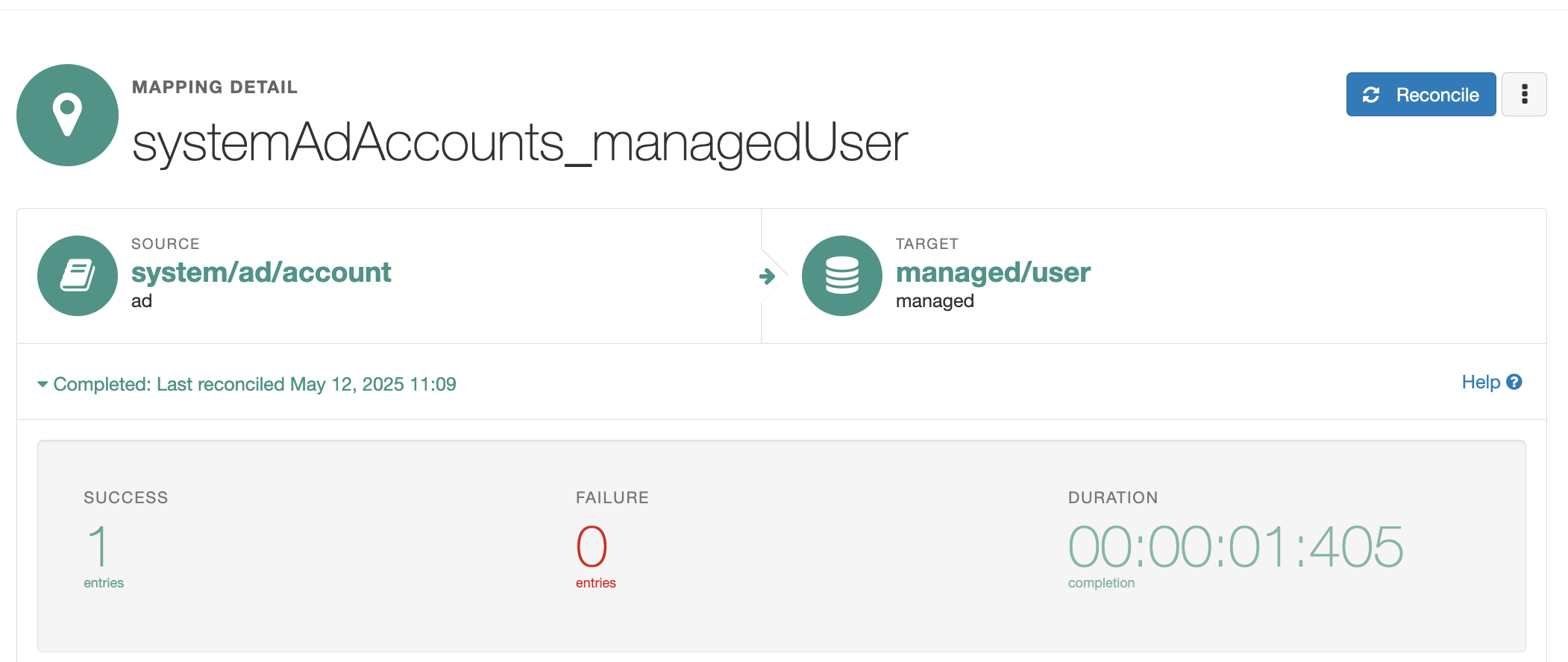

In the administrator console, select the systemAdAccounts_managedUser mapping and click Reconcile.

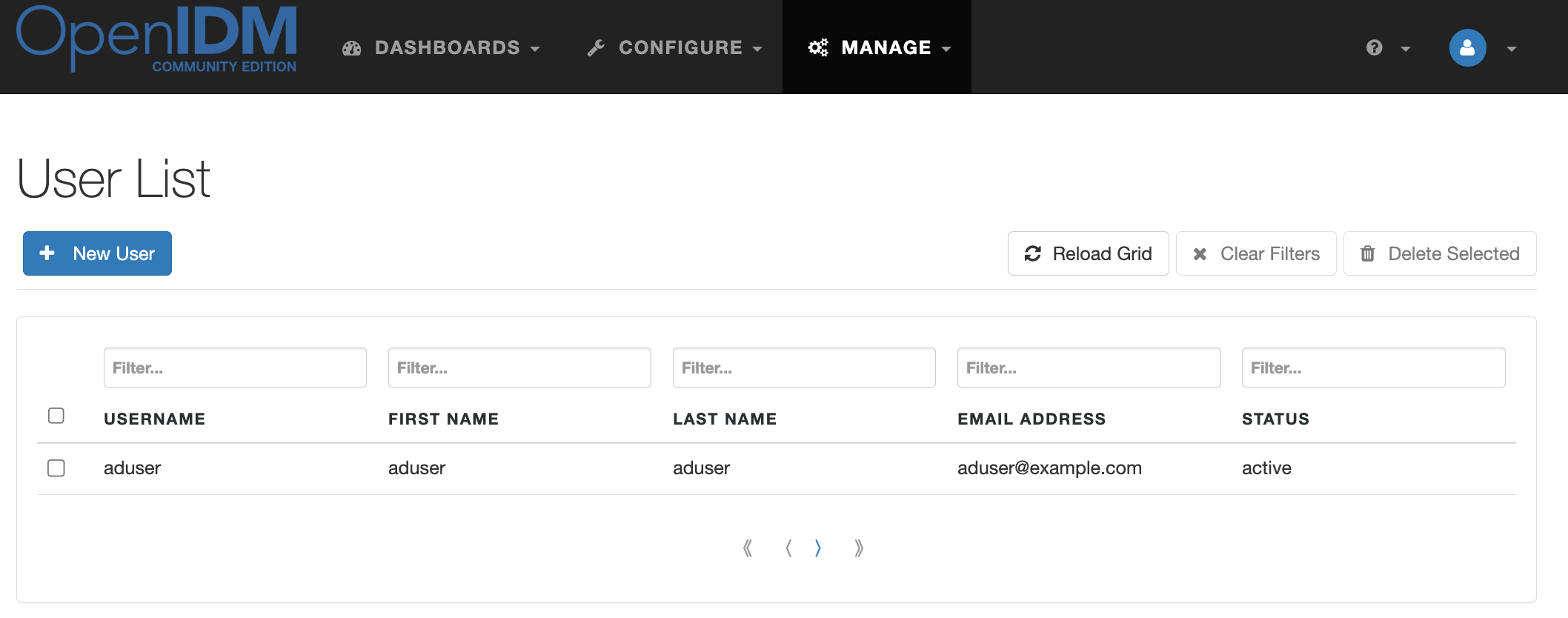

In the admin console, navigate to the Manage → User list. Accounts from Active Directory will appear in the user list

In the admin console, select the managedUser_systemLdapAccounts mapping **and click Reconcile. After successful synchronization, the Active Directory records created in Managed Users will appear in OpenDJ.

Check if the account exists with the command

./opendj/bin/ldapsearch -p 1389 -b dc=example,dc=com  "(uid=aduser)" uid
dn: uid=aduser,ou=People,dc=example,dc=com
uid: aduser

OpenDJ Synchronization → Active Directory

In the admin console, under Configure → Mappings, select the systemLdapAccount_managedUser mapping and click Reconcile.

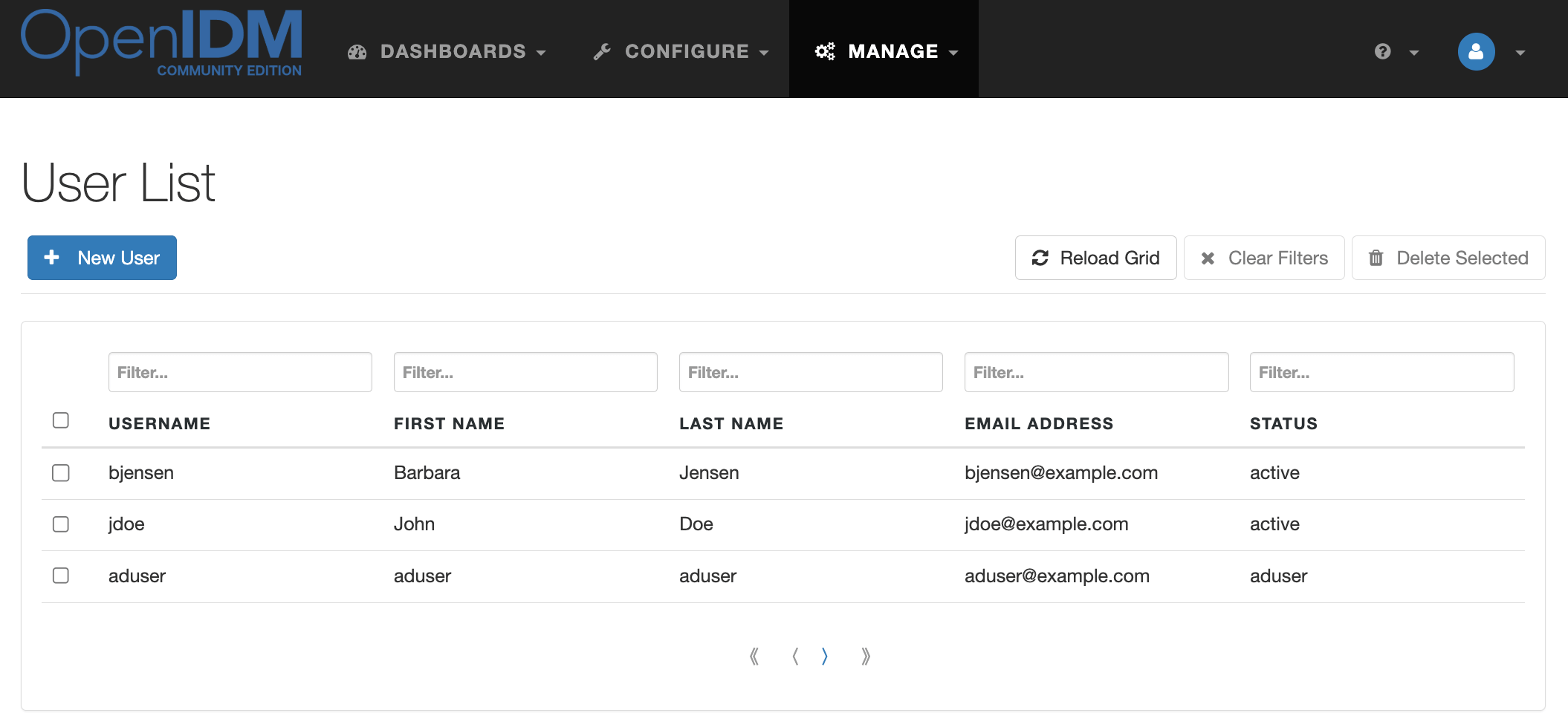

Navigate to Manage → User.

Accounts from OpenDJ will appear in the user list

Next, select the managedUser_systemAdAccount mapping and click Reconcile.

After successful synchronization, accounts from OpenDJ will appear in Active Directory.

Verify their existence with the following command

ldapsearch -H ldap://ad.example.com -x -W -D "admin@example.com" -b "dc=example,dc=com" "(sAMAccountName=bjensen)" | grep dn
Enter LDAP Password:
dn: CN=bjensen,CN=Users,DC=example,DC=org
